Introduction
Hydraulic systems play a critical role in a wide range of industries, from manufacturing and construction to aerospace and agriculture. At the heart of these systems lies a network of components that must operate flawlessly under pressure — literally. Among these components, hydraulic fittings and seals are essential for maintaining pressure, preventing leaks, and ensuring the system’s longevity and safety.
When selecting the right hydraulic fitting, one of the key decisions involves choosing between metal seals and soft seals. Each offers unique advantages and trade-offs, depending on the application. This article provides a detailed comparison between the two, helping you make an informed, performance-based, and cost-effective decision for your hydraulic system.

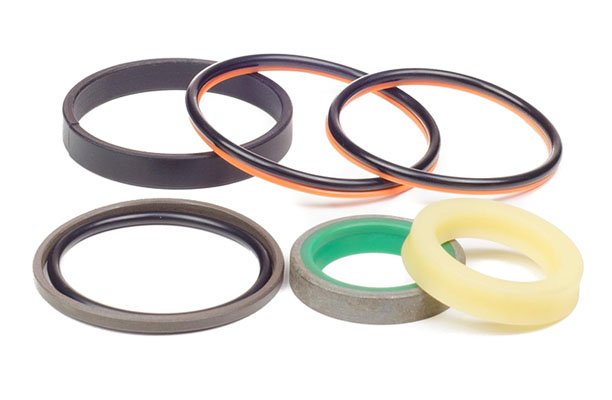

Understanding Hydraulic Seals
Hydraulic seals are specialized components used to contain fluid within hydraulic cylinders and fittings. Their primary purpose is to prevent fluid leakage, retain pressure, and maintain the integrity of the hydraulic system. Seals can be made from a variety of materials, each suited to different operational environments and stress factors.
These seals are integral to the performance of hydraulic systems. An improperly chosen or installed seal can lead to system inefficiency, pressure loss, or catastrophic failure. Understanding the basic role and types of seals is essential for selecting the most appropriate fitting solution for any application.
The two most common categories of hydraulic seals are metal seals and soft seals. Each type has its own strengths, limitations, and ideal use cases, which we’ll explore in detail throughout this article.
Metal Seals: Characteristics and Applications
Metal seals are typically made from stainless steel, Inconel, titanium, or other high-performance metals. These seals provide a robust solution in applications that demand extreme pressure resistance, high temperatures, or exposure to corrosive fluids.
Advantages of Metal Seals
- High-temperature tolerance: Metal seals can withstand temperatures far exceeding the limits of elastomeric or polymer-based soft seals, often up to 1000°C or higher.
- Exceptional resistance to aggressive fluids: Unlike soft seals, metal does not degrade or swell when exposed to fuels, solvents, or harsh chemicals.
- Durability and longevity: Metal seals are incredibly long-lasting and can perform reliably for years in properly maintained systems.
Common Applications
- Aerospace and defense: Where weight, pressure, and thermal stability are critical.
- Oil and gas: Especially in deep drilling or offshore rigs where extreme environments are standard.
- High-pressure industrial systems: Such as those found in hydraulic presses and testing equipment.
Soft Seals: Characteristics and Applications
Soft seals are made from pliable materials such as elastomers (e.g., Nitrile, Viton, EPDM), PTFE, and polyurethane. These materials offer excellent flexibility, making them ideal for forming tight seals under moderate pressure and temperature conditions. One of the most common types of soft seals is the O-ring, widely used across various hydraulic systems.
Advantages of Soft Seals
- Superior sealing at low to moderate pressures: Their flexibility allows them to conform tightly to surface imperfections, creating highly effective seals.
- Ease of installation and replacement: Soft seals can be quickly fitted or swapped without specialized tools.
- Cost-effective: Compared to metal seals, soft seals are more economical both in upfront and maintenance costs.
Common Applications
- Mobile hydraulics: Used in forklifts, skid steers, and small-scale machinery.
- Agricultural and construction equipment: Tractors, harvesters, and loaders often rely on soft seals.
- Industrial machinery: Where operating conditions are moderate and cost-efficiency is important.
Comparison: Metal vs Soft Seals
Choosing between metal and soft seals involves analyzing various performance factors. Each seal type has distinct strengths, and the optimal choice often depends on the application’s environmental and operational requirements.
| Criteria | Metal Seals | Soft Seals |
|---|---|---|
| Sealing Efficiency | Excellent at high pressure, but requires perfect surface finishes | Very good at lower pressures; tolerates minor surface imperfections |
| Temperature Compatibility | Handles extreme temperatures up to 1000°C+ | Limited to ~200°C depending on material |
| Fluid Compatibility | Highly resistant to aggressive and corrosive fluids | Varies with material; some are susceptible to swelling or breakdown |
| Cost | High initial cost, lower lifetime cost | Low upfront cost, may require more frequent replacement |
| Installation | Requires precision; often more complex | Quick and easy to install |
Choosing the Right Seal for Your Application
Selecting the appropriate hydraulic seal isn’t just about choosing between metal and soft materials; it’s about matching the seal to your system’s unique needs. Below are critical factors to guide your decision.
Key Factors to Consider
- Operating pressure and temperature: High-pressure and high-temperature systems typically require metal seals. For moderate conditions, soft seals may suffice.
- Fluid compatibility: Always verify the seal material’s resistance to the fluids used in your system.
- Environmental exposure: Dust, moisture, UV exposure, and temperature swings may degrade soft seals faster than metal ones.
- Maintenance expectations: Soft seals are easier to replace during routine maintenance. Metal seals are more durable but may involve complex installation.
Application-Specific Recommendations
- For aerospace or offshore drilling: Use high-performance metal seals designed for extreme conditions.
- For mobile hydraulic systems: Soft seals are often the most cost-efficient and practical choice.
- For high-cycle industrial use: Consider hybrid or reinforced soft seals to balance durability and cost.
Common Problems with Incorrect Seal Selection
Using the wrong type of seal in a hydraulic system can lead to a range of operational and safety issues. These problems often result in increased maintenance, equipment downtime, and even environmental hazards.
Leakages and Safety Risks
One of the most immediate consequences of incorrect seal selection is fluid leakage. This not only compromises the system’s efficiency but also poses significant safety risks, particularly in high-pressure environments. In industries like aerospace or heavy machinery, leaks can result in catastrophic failure or injury.
Increased Maintenance Costs
Seals that are not suited for the specific temperature, pressure, or chemical exposure degrade quickly. Frequent replacements, emergency repairs, and unplanned downtime can significantly increase maintenance budgets and reduce operational uptime.
System Failure or Inefficiency
Improper sealing affects the pressure balance within hydraulic systems, often causing erratic or suboptimal performance. Over time, this can lead to wear and tear on other components, ultimately resulting in system-wide failure.
Innovations in Seal Technology
To meet evolving industry demands, manufacturers have developed advanced sealing solutions that go beyond traditional metal or soft materials. These innovations aim to enhance performance, reduce environmental impact, and extend service life.
New Materials and Hybrid Seals
Hybrid seals combine the strength of metal with the flexibility of elastomers. These are designed to handle a broader range of operating conditions while improving seal adaptability and performance. Composite materials like PTFE-coated metals or carbon-filled polymers are also gaining popularity in specialized applications.
Smart Sealing Solutions
Some modern hydraulic systems now incorporate sensors and IoT-enabled seals that monitor seal wear, temperature, and pressure in real time. These intelligent solutions enable predictive maintenance and reduce the risk of unexpected seal failure.
Industry Standards and Guidelines
To ensure reliability and safety, hydraulic seals must comply with industry standards. These guidelines help in selecting, testing, and verifying seal performance under specific operating conditions.
ISO and SAE Standards
- ISO 3601: Specifies O-ring dimensions, tolerances, and quality control standards for hydraulic and pneumatic systems.
- SAE J514 and J1453: Outline the performance requirements for metal and elastomeric seals in fluid power systems.
Compliance and Certification
When sourcing seals, it is important to verify certifications such as RoHS, REACH, and FDA compliance (where applicable). Certified seals ensure both performance reliability and environmental responsibility, particularly in regulated industries like food processing or pharmaceuticals.
Case Studies
Case Study: Metal Seals in Aviation
An aerospace manufacturer needed seals that could withstand extreme altitude, temperature fluctuations, and hydraulic pressures exceeding 5,000 psi. They chose precision-machined metal seals for their hydraulic actuator systems. The result was a significant reduction in system failure rates and maintenance frequency, boosting aircraft reliability and flight safety compliance.
Case Study: Soft Seals in Construction Machinery
A construction equipment company opted for high-quality Nitrile O-rings in their fleet of hydraulic excavators. Operating in muddy, variable-temperature environments, these soft seals provided quick installation and reliable sealing. The switch to reinforced soft seals reduced maintenance costs by 22% annually and improved machine uptime.
Expert Insights
Interview with a Hydraulic Systems Engineer
According to John Keller, a senior engineer with 15 years in fluid power systems: “The biggest mistake I see is people using metal seals for applications that don’t demand it. Soft seals, when properly specified and installed, are more than adequate for 80% of hydraulic systems — and a lot more cost-effective.”
Tips from Maintenance Technicians
- “Always inspect housing surface finishes before installing metal seals.”
- “Use proper lubrication with soft seals to reduce friction and premature wear.”
- “Track operating conditions; even a 10-degree shift can affect seal performance.”
Cost-Benefit Analysis
Short-Term vs Long-Term Costs
Soft seals typically cost less upfront and are cheaper to replace. However, in high-stress applications, their shorter lifespan may increase total cost of ownership. Metal seals cost more initially but offer extended service life, especially in systems where maintenance access is limited or expensive.
Downtime Reduction and ROI
Metal seals can reduce unplanned downtime in critical systems, improving return on investment through enhanced reliability. On the other hand, soft seals offer a faster maintenance cycle, which is beneficial in industries where uptime is vital but high stress isn’t a daily concern.
Ultimately, the right seal provides the best value when it matches the system’s operating profile and performance demands.
Environmental Considerations
Sustainability of Seal Materials
With growing emphasis on environmental responsibility, the choice of seal material can impact a system’s eco-footprint. Soft seals made from recyclable elastomers or bio-based materials are now available for environmentally-conscious applications. Manufacturers are also focusing on non-toxic, low-emission production processes for both metal and soft seals.
Seal Lifecycle Impact
Metal seals, while less frequent to replace, require more energy and resources to manufacture. On the flip side, soft seals have a shorter lifecycle but can be replaced easily with minimal system disruption. Choosing a longer-lasting seal reduces waste generation, while recyclable or biodegradable soft seal materials offer an eco-friendly alternative.
Future Trends in Hydraulic Sealing
Advancements in Nanomaterials
Nanotechnology is revolutionizing seal materials by enhancing thermal resistance, chemical compatibility, and wear durability. Nanocoatings and nano-fillers are being used to create seals that outperform traditional elastomers and metals in extreme conditions.
Digital Monitoring of Seal Health
Smart hydraulic systems now incorporate embedded sensors that monitor seal condition in real time. These systems track variables like temperature, vibration, and leakage indicators, allowing for predictive maintenance and minimizing unexpected failures. This digital transformation is set to become a standard in high-performance hydraulic applications.
Conclusion
Choosing between metal and soft seals for hydraulic fittings is not a one-size-fits-all decision. Each seal type offers distinct advantages depending on operating pressures, temperatures, fluid compatibility, and maintenance expectations. Metal seals shine in high-stress, high-performance environments, while soft seals provide flexible, cost-effective solutions for everyday hydraulic systems.
By evaluating key factors such as system requirements, environmental conditions, and lifecycle costs, you can make a well-informed decision that optimizes both performance and budget. The right seal not only improves reliability but also enhances system longevity and environmental compliance.
FAQs
1. What are the main differences between metal and soft seals?
Metal seals are designed for extreme pressures and temperatures, offering durability and chemical resistance. Soft seals, such as elastomer O-rings, are more flexible and easier to install, making them ideal for moderate pressure and temperature conditions.
2. Can I switch between metal and soft seals in an existing hydraulic system?
Yes, but it depends on the system’s design and operating parameters. Switching from soft to metal seals may require changes in surface finish and installation procedures. Always consult the system’s specifications before making changes.
3. Which type of seal offers better longevity?
Metal seals typically last longer in high-stress environments due to their resistance to wear, heat, and chemical attack. However, properly maintained soft seals can also perform reliably in standard hydraulic systems.
4. Are there hybrid options combining metal and soft seals?
Yes, hybrid seals are increasingly used in complex applications. These combine a metal body for structural integrity with a soft sealing surface to improve adaptability and sealing efficiency.
5. How do I determine the correct seal for my hydraulic system?
Consider factors such as pressure range, temperature exposure, fluid type, environmental conditions, and maintenance needs. Following ISO or SAE standards and consulting a seal expert can ensure optimal selection.
