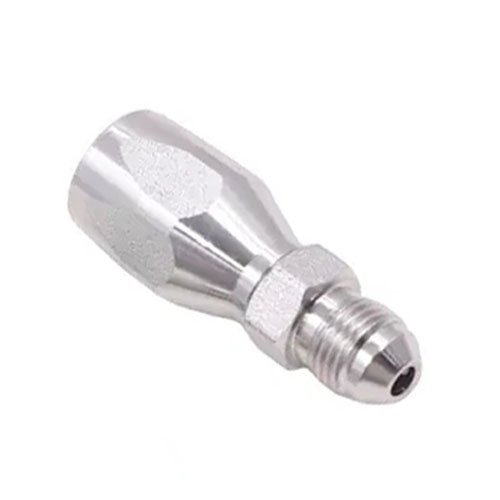

The 16718-R5 Reusable Hose Fitting is designed to offer reliable performance in a variety of hydraulic applications. This fitting is ideal for use with SAE 100R5 hydraulic hoses, providing a secure and leak-free connection. Its reusable design ensures cost-efficiency and ease of maintenance, making it a popular choice for industries where quick repairs and replacements are necessary.
| Part Number | 16718-R5 |
|---|---|
| Connection Type | Reusable Hose Fitting |
| Product Materials | Carbon Steel |
| Surface Finish | Zinc Plated |
| Compatibility | SAE 100R5 Hydraulic Hose |
| Thread | JIC MALE 74° CONE |
| PART NO. | THREAD E |
HOSE DASH
|
DIMENSIONS
|
|
| A | S1 | |||
| 16718-04-04(R5) | 7/16”×20 | 04 | 29 | 12 |
| 16718-06-05(R5) | 9/16”×18 | 05 | 31 | 17 |
| 16718-06-06(R5) | 9/16”×18 | 06 | 32 | 17 |
| 16718-08-06(R5) | 3/4”×16 | 06 | 34.7 | 22 |
| 16718-08-08(R5) | 3/4”×16 | 08 | 38 | 22 |
| 16718-10-10(R5) | 7/8”×14 | 10 | 40.5 | 24 |
| 16718-12-12(R5) | 1.1/16”×12 | 12 | 45.5 | 30 |
| 16718-16-16(R5) | 1.5/16”×12 | 16 | 44 | 36 |
| 16718-20-20(R5) | 1.5/8”×12 | 20 | 49.5 | 46 |
| 16718-24-24(R5) | 1.7/8”×12 | 24 | 52.5 | 50 |
The 16718-R5 Reusable Hydraulic Hose Fitting is versatile and can be used across a wide range of applications, including:
